This Wiha Digital Multimeter equips you for a wide variety of measurements. This single tool can be used to make voltage, current, resistance, frequency, capacity, and temperature measurements. In addition, continuity and diode tests are also possible.

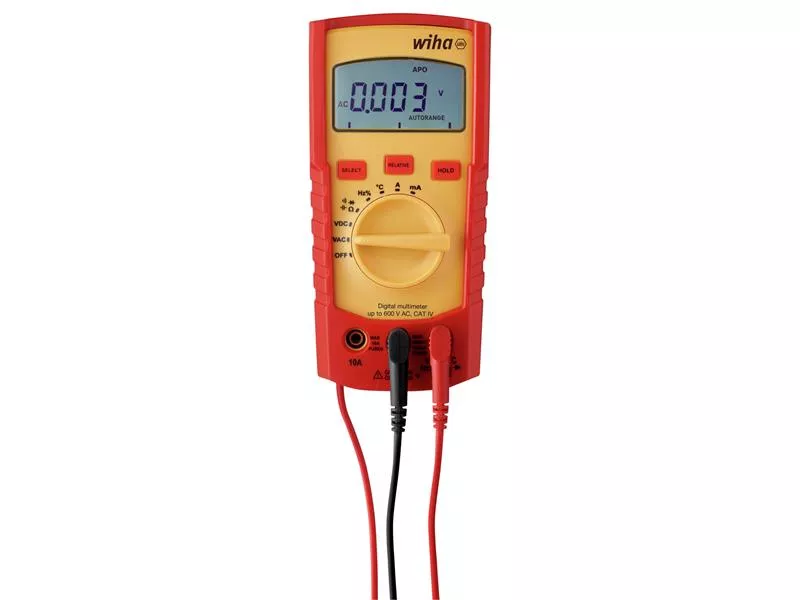

A large LCD display makes the measurement results immediately readable even beyond the measurement process. An additional signal sound indicates the current flow during the continuity check. Thanks to the automatic measuring range selection, the manual pre-selection of specific measurement ranges is no longer required. The storage of previous measurement values and their comparison to future measurement results allows a variety of control options.

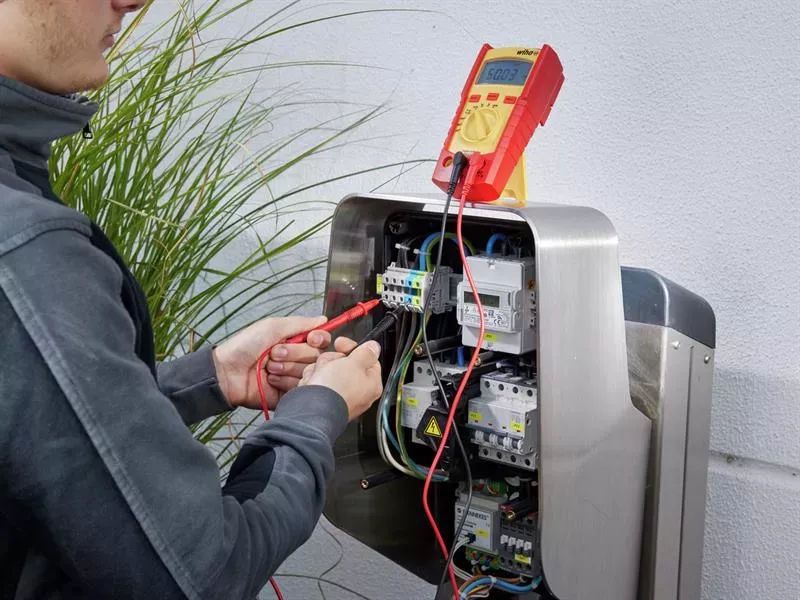

According to the measurement categories CAT III up to 600 V and CAT IV up to 300 V, the digital multimeter from Wiha offers maximum safety for working on building installations and directly on the sources of low-voltage installations.
Conforms to EN 61010-1, EN 61010-2-033, EN 61010-031, IP 40, CE, GS CAT III 600V / CAT IV 300V Standards.
Specifications:
Current (AC/DC): 10 A/10 A.
Min. - Max. Voltage (AC/DC): 0-1,000V/0-1,000V.
Resistance: 200 MΩ.
Frequency: 60 MHz.
Temperature Measurement: -200°C to 1,350°C.
Contamination Level: 2.
Protection Class: IP 40.
Operating Temperature: 0°C - 50 °C.
Capacity: 60 mF.
Power: 2 x AAA Batteries (supplied).
