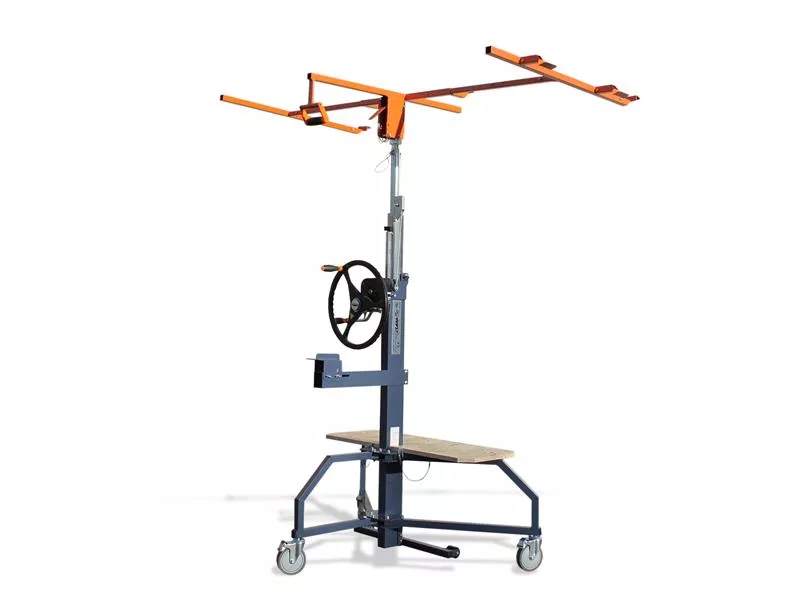

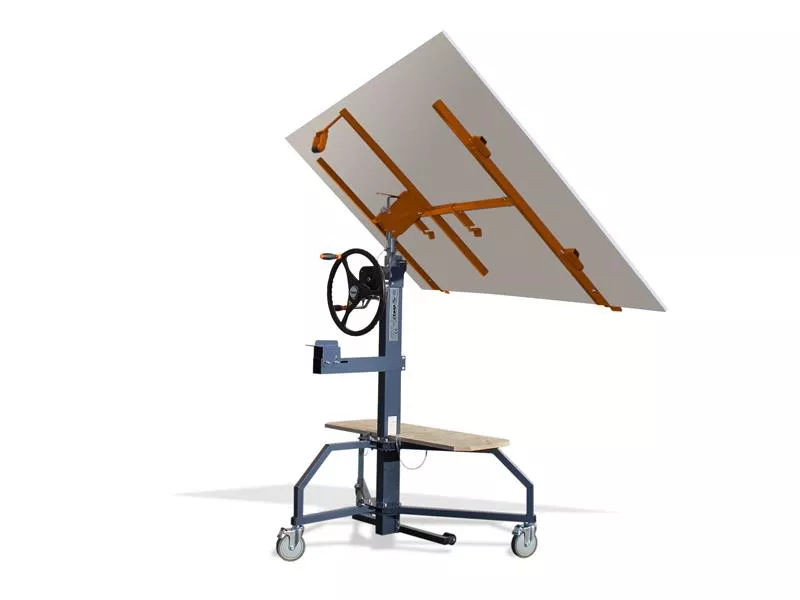

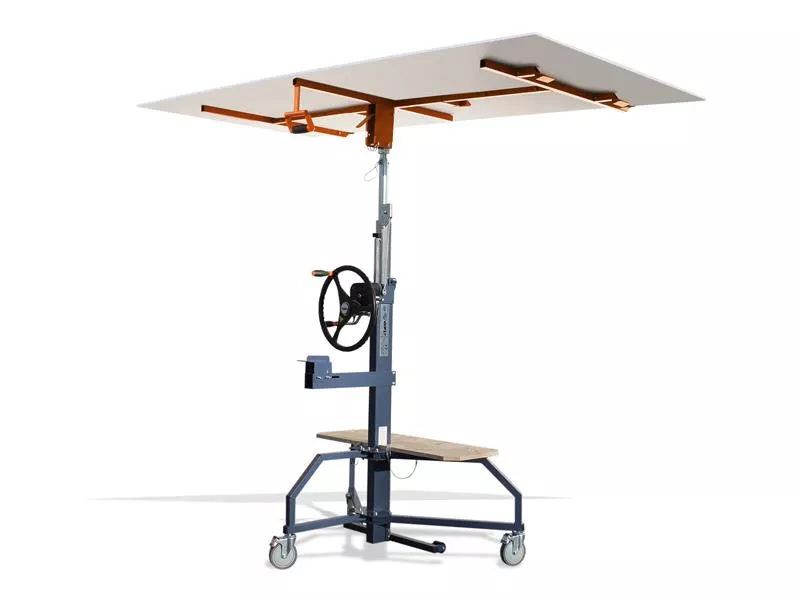

Edma EDMAPLAC 450 Rack and Pinion Panel Lifter lifts plasterboard in every position: horizontal (ceiling installation), angled (sloping ceiling installation) and vertical (wall installation). Its rack and pinion system allows to lift plasterboards with less effort than other panel lifters.
It has 3 wheels, 2 with brakes. The innovative braking system with 2 handles (main brake + safety brake) allows you to lower the panel quickly under control. The ergonomic design with bi-material handle allows to tilt the top rack up to vertical position. Automatic operation is possible thanks to power drill assistance. It easily passes through doorways thanks to its foldable feet.
Tool carrier wooden board included.
CE certified.
In conformity with European directive 'MACHINERY'-2006/42/CE.
Approved by the VERITAS conformity report# 628 8214-1.
Specifications:
Max. Load: 80kg.
Max. Height: with Extension 4.5m, without extension 3.5m.
Max. Height in Vertical Position: 5.75m (with 2.5m height board).
Board Dimensions: Max. 1.2 x 3.6m, Min. 0.15 x 0.6m.
Min. Height : 161cm.
Board Loading Height without Extension Part: 84cm.
Min. Width in Moving/Storage Position: 63cm.
