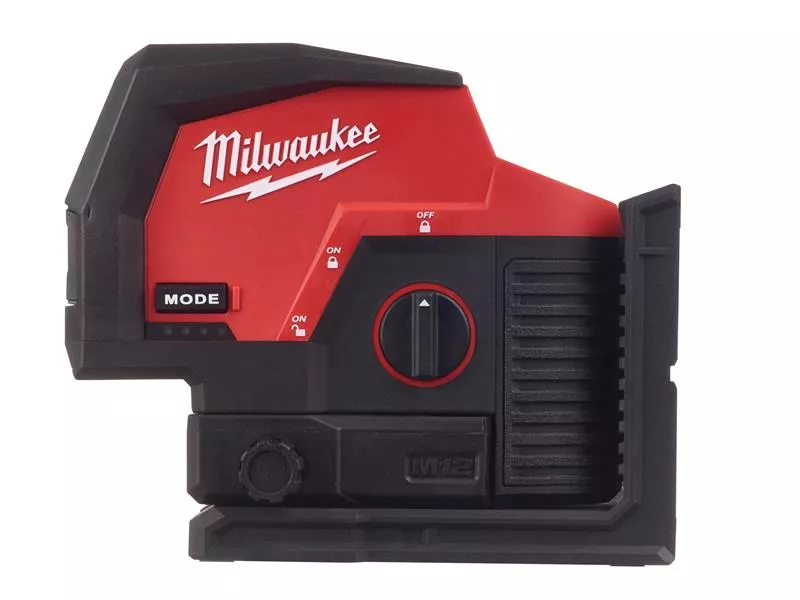

The Milwaukee M12™ CLLP Cross Line Laser provides an all-in-one functionality with horizontal levelling, vertical alignment and plumb point transfer from floor to ceiling. It has a 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range, and Pendulum Lock Mode to protect components during transport. High-intensity green diodes provide uncompromised visibility, up to 4x better visibility vs red lasers.

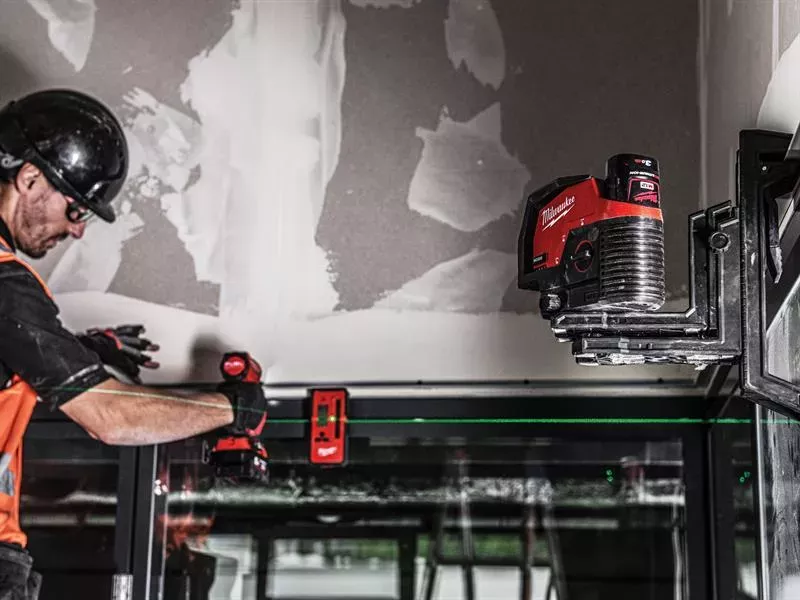

It has a robust, overmoulded construction with an IP54 rating, water/debris resistant and can withstand up to 1m drops. The design incorporates a magnetic bracket with rear-mounted amplified rare earth magnets, 1/4in and 5/8in tripod thread, and a hang hole for attachment to steel and wooden stud. The bracket also provides the laser 360° rotation that pivots on a plumb point, with an integrated micro-control knob for faster point-to-point alignment.
A fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM™ USB battery charge.
Supplied with: 1 x Hi-Vis Target Plate and 1 x Track Clip.
Specification:
Level Accuracy: + 0.3mm/m
Working Range: 30m, up to 100m with Detector
Self-Levelling Range: 4°
Self-Levelling Time: 3 Seconds
Max. Run Time: 15 hours with an M12 B4 Battery
Weight: 0.90kg
The Milwaukee M12™ CLLP-301C Green Cross Line Laser is supplied with:
1 x Hi-Vis Target Plate
1 x Track Clip
1 x 12V 3.0Ah Li-ion Battery
1 x 12V C12 C Charger
