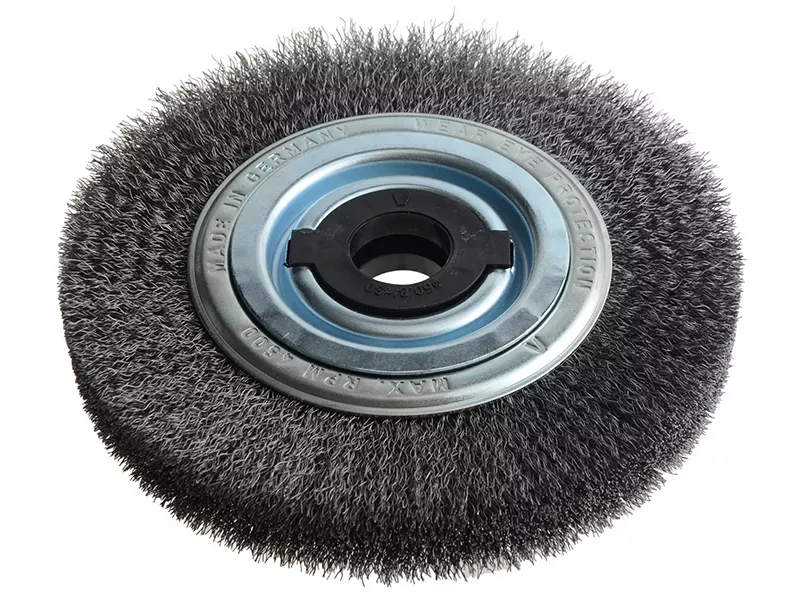

This Lessmann Wheel Brush has the following specifications:
Diameter: 200mm.
Width: 35-40mm.
Min./Max. Bore: 16/80mm.
Wire Gauge: 0.30/0.35.
Wire Type: Steel Crimped.
Max. RPM: 4,500.
Supplied with:
1 x Set of Adaptors (Set 1). Dimensions: 30, 22.2, 20, 16 & 12mm, 1in & 1/2in.
1 x Set of Adaptors (Set 4). Dimensions: Brushes With Metal Discs Bore 50.8 & Double Keyway 7x13; Plus Adaptor to Bore 30.
The Lessmann Wheel Brushes are filled with crimped wire and are used for obtaining different surface finishes. For the removal of rust, paint and dirt, for roughening, de-burring. Stripping or polishing.
A decisive factor for choosing the most suitable brush is the wire and tube diameter. Brushes with a larger tube diameter are filled with more wire, are more aggressive and have a longer life. Some of the brushes are supplied with adaptor sets that allow easy mounting on all popular grinding machines.
The adaptors have the following dimensions:
Set 1: 30, 22.2, 20, 16 & 12mm, 1in & 1/2in.
Set 2: 40, 32, 22.2, 20, & 16mm, 1in & 1/2in.
Set 3: 50, 32, 22.2, 20, & 16mm, 1in & 1/2in.
Set 4: Brushes With Metal Discs Bore 50.8 & Double Keyway 7x13; Plus Adaptor to Bore 30.
